The core requirement for UL equipment wiring is to ensure the electrical, mechanical, and environmental safety of wires and cables, in order to pass UL certification and comply with the National Electrical Code (NEC) in the United States. This mainly involves selecting the appropriate cable type, conducting correct internal wiring, and using certified connection accessories.

The following are several key requirements of UL standards for equipment wiring:

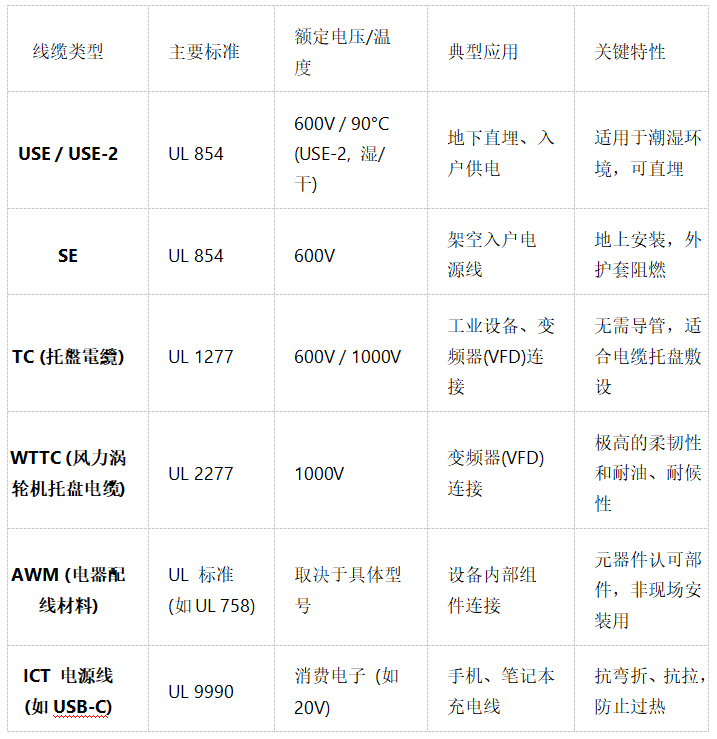

Choosing the right UL cable type: It is crucial to select the appropriate UL certified cable based on the application environment. Different types of cables have significant differences in voltage resistance, temperature resistance, flame retardancy, weather resistance, and applicable locations.

Follow UL 508A internal wiring specifications: For industrial control cabinets and other equipment, internal wiring must comply with UL 508A standards. The key requirements include:

Use insulated wires with sufficient mechanical strength, voltage resistance, and current carrying capacity.

All branching and connection points must be mechanically fixed to ensure reliable electrical connections.

The wires passing through the metal plate opening must be protected (such as using wire protectors) to prevent cutting by sharp edges.

Using UL certified connection accessories and correctly crimping: The quality of wire to terminal or connector connections directly affects system safety. To comply with UL requirements, the following principles must be followed:

Overall matching: Wires, terminal blocks, and crimping tools must be used together as a system according to the manufacturer's specifications to ensure the mechanical strength and low resistance of the crimping.

Select attachment: Use UL recognized terminal blocks or wire ferrules. When selecting, the pin length should be adapted to the connected device, and the inner diameter should match the wire diameter.

Handling Stranded Wires: For multi stranded wires, it is recommended to use wire grommets for crimping before inserting terminals to prevent loose cores and ensure reliable connections.

Pay attention to special application environments:

Variable frequency drive (VFD): Shielded cables (such as TC, WTTC) must be used between the VFD and the motor to suppress electromagnetic interference (EMI), and insulation materials that can withstand high voltage reflection and corona discharge must be selected.

Dangerous environment (such as Class I Zone 2): All cable connections must have suitable cable glands and use shielded/grounded cables. The shielding layer of communication cables must be directly connected to the metal joint housing, and the use of drain wires is strictly prohibited.

Medical facilities: Medical plug connectors need to meet higher durability and safety requirements, such as passing strict stress relief tests.

Summary: When wiring UL equipment, the core is to "select the right wires and connect them properly". Select cables with corresponding UL type markings (such as TC, USE) based on NEC and specific application scenarios, and ensure that all connecting accessories and crimping processes also comply with UL standard requirements.
