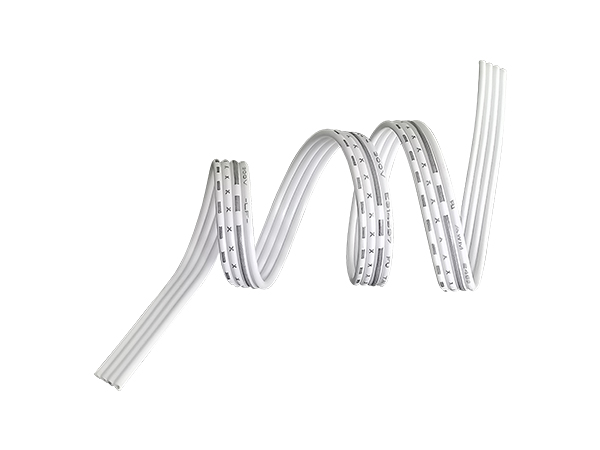

UL 2468

Product Details
Product Description

♦Rated temperature:80℃.Rated voltage:300volts

♦Tinned,annealed,stranded or solid copper xonductor 30~16 AWG

♦Color-coded PVC insulation

♦Resistant to acids,Oils,alkalis,moisture and fungus

♦VW-1 Vertical flame test

Application

♦Applicable electrical and electronic equipment

Specification
UL Style
&
CSA Type		 Conductor No.Of
Core		 Insulation
Thickness		 Overall
Diamete		 Standard put-up
Line number Number of wires/diameter Imperial Metric
AWG No./mm mm mm ft/coil m/coil
UL 2468
CSAI A/B
(AWM)		 26 7/0.160 2 0.41 1.3x2.6 2000 610
24 11/0.160 2 0.41 1.5z3.0 2000 610
22 17/0.160 2 0.41 1.7z3.4 2000 610
20 26/0.160 2 0.41 1.9x3.8 2000 610
18 41/0.160 2 0.41 2.1x4.2 1000 305
