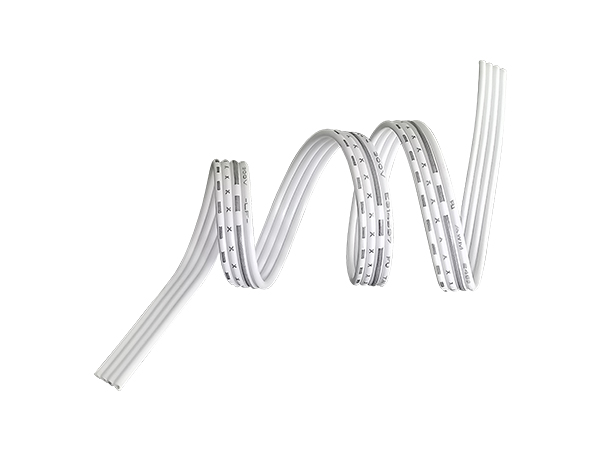

UL 2651

Specification

UL Style & CSA Type	Conductor		Pitch	No.Of Core	Insulation Thickness	Overall Diamete	Standard put-up
	Line number	Number of wires/diameter	Pitch	No.Of Core	Insulation Thickness	Overall Diamete	Imperial	Metric
	AWG	No./mm	mm	mm	mm	mm	ft/coil	m/coil
CSA IA ( OS-1 ) Low lead and low cadmium side by side CSA IA TS Tinned Copper Winches	26	7/0.160	2.0	2	0.23	1.05x4.00	500	152
				3		1.05x6.00
				4		1.05x8.00
				5		1.05x10.00
				6		1.05x12.00
				7		1.05x14.00
				8		1.05x16.00
				9		1.05x18.00
				10		1.05x20.00
				11		1.05x22.00
				12		1.05x24.00
CSA IA ( OS-1 ) Low lead and low cadmium side by side CSA IA TS Tinned Copper Winches	28	7/0.127	1.27	2	0.23	0.92x2.54	2000	610
				3		0.92x3.81
				4		0.92x5.08
				5		0.92x6.35	250	76
				6		0.92x8.89
				7		0.92x10.16
				8		0.92x11.43
				9		0.92x12.70
				10		0.92x13.97
				11		0.92x15.24
				12		0.92x16.51
				13		0.92x17.78
				14		0.92x19.05
				15		0.92x20.32
				16		0.92x21.59
				17		0.92x22.86
				18		0.92x24.13
				19		0.92x25.40
				20		0.92x26.67
				21		0.92x27.94
				25		0.92x31.75
				30		0.92x38.10
				40		0.92x50.80
				50		0.92x63.50
