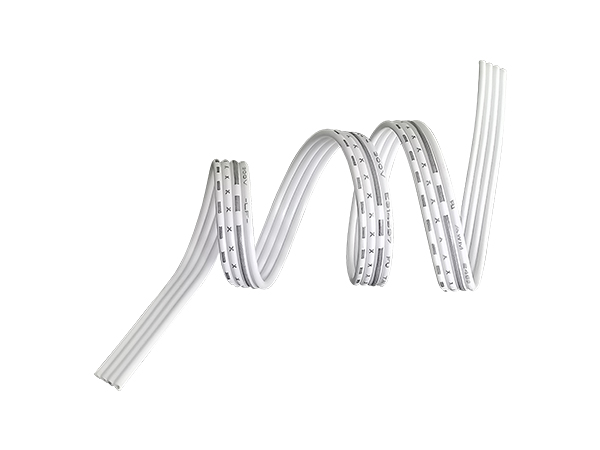

UL 2651

Product Details
Characteristic:

·Rated temperature:105℃

·Rated voltage:300volts

·UL VW-1 Vertical flame test

·Resistant to acids,Oils,alkalis,moisture and fungus

Product Description：

Conductor: tinned copper or copper

Insulation: PVC

Application：

For general computer and electrical equipment

Specification
UL Style
&
CSA Type		 Conductor Pitch No.Of
Core		 Insulation
Thickness		 Overall
Diamete		 Standard put-up
Line number Number of wires/diameter Imperial Metric
AWG No./mm mm mm mm ft/coil m/coil
CSA IA
(OS-1)
First plating,
then twisting,
then plating		 24 7/0.200 1.5 2 0.23 1.4x2.9 2000 610
3 1.4x4.4
4 1.4x5.9
5 1.4x7.4 1000 305
6 1.4x8.9
7 1.4x10.4
