Your location  Home -> Products  ->  Flat Cable  ->  UL 2468

We actively respond to customers' product needs, strive to understand their real needs and provide them with solutions suitable for customers, and look forward to working closely with you. Welcome new customers to inquire!

Hotline：+86-0769-85704089
qq Mr Li qq Miss Wang

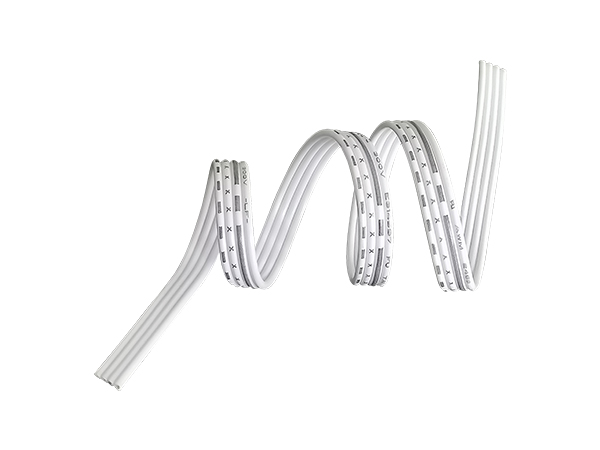

UL 2468

Specification
UL Style
&
CSA Type		 Conductor Pitch No.Of
Core		 Insulation
Thickness		 Overall
Diamete		 Standard put-up
Line number Number of wires/diameter Imperial Metric
AWG No./mm mm mm mm mm ft/coil m/coil
CSA IA
( OS-1 )
First plating and then twisting and then plating		 24 7/0.200 2.5 2 0.45 1.5x4.0 2000 610
3 1.5x6.5
4 1.5x9.0 500 152
5 1.5x11.5
6 1.5x14.0
7 1.5x16.5
8 1.5x19.0
9 1.5x21.5
10 1.5x24.0
11 1.5x26.5
12 1.5x29.0
CSA IA
( OS-1 )
First plating and then twisting and then plating		 26 7/0.160 1.5 2 0.45 1.4x2.9 2000 610
3 1.4x4.4
4 1.4x5.9
5 1.4x7.4 1000 305
6 1.4x8.9
7 1.4x10.4
8 1.4x11.9 500 152
9 1.4x13.4
10 1.4x14.9
11 1.4x16.4
12 1.4x17.9
13 1.4x19.4
14 1.4x20.9
15 1.4x22.4
16 1.4x23.9
17 1.4x25.4
26 7/0.160 2.0 2 0.45 1.4x3.4 2000 610
3 1.4x5.4
4 1.4x7.4 500 152
5 1.4x9.4
6 1.4x11.4
7 1.4x14.4
8 1.4x15.7
9 1.4x17.4
10 1.4x19.4
11 1.4x21.4
12 1.4x23.4
26 7/0.160 2.5 2 0.45 1.4x3.9 2000 610
3 1.4x6.4
4 1.4x8.9 500 150
5 1.4x11.4
6 1.4x13.9
7 1.4x14.4
8 1.4x18.9
9 1.4x21.4
10 1.4x23.9
11 1.4x26.4
12 1.4x28.9
