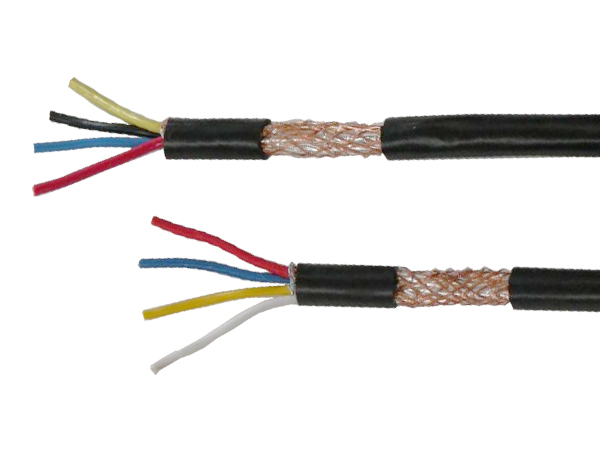

UL 2547

Product Details
Product Description

♦Rated temperature:80℃.Rated voltage:300voltsNot specified

♦Conductor using single or multiple tinned soft copper wires 30-16AWG

♦Environmental protection SR-PVC insulation, 2 or 3 cores

♦Tinned copper wire winding shielding

♦Color-coded PVC insulation

♦VW-1 Vertical flame test

Application

Suitable for electronic equipment, audio studio, music system

Specification
UL Style
&
CSA Type		 Conductor Insulation Thickness Shielded Jacket
Thickness		 Overall
Diameter		 Stand Put-up
Line number Number of wires/diameter Imperial Metric
AWG （NO./mm） （mm） （No./mm） （mm） （mm） ft/coil m/coil
UL2547
（2-core）		 30 7/0.100 0.25 50/0.102 0.40 2.7±0.10 2000 610
28 7/0.127 2.8±0.10
26 7/0.160 3.0±0.10
24 7/0.203 50/0.127 3.2±0.10
22 17/0.160 56/0.127 0.45 3.7±0.10
20 26/0.16 76/0.127 4.0±0.10
18 41/0.16 88/0.127 4.5±0.10
UL2547
（3-core）		 30 7/0.100 0.25 54/0.102 0.40 2.8±0.10 2000 610
28 7/0.127 50/0.127 3.0±0.10
26 7/0.160 55/0.127 3.2±0.10
24 7/0.203 61/0.127 3.35±0.10
