UL electron wire
Focus on production and sales+86-0769-85704089
|
|
|
|
|
♦Rated temperature:60℃
♦Rated voltage:30volts
♦UL VW-1 and flame retardant FT1 vertical combustion test
♦Conductor: stranded bare copper or tinned copper
♦Cover: PVC, insulator PVC

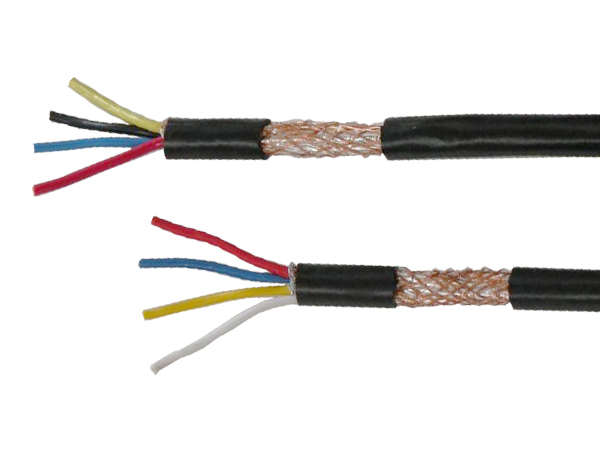

♦Twisted shielding with tinned copper or bare copper wire
♦Executive standards: UL758, UL1581
For internal wiring of electronic and electrical equipment
| Core Qty |
Conductor | Insulation | Jacket | ||||
| AWG | Conductor NO×φmm |
20℃ Resistance Ω/km |
Insulation Thickness mm |
Nom.dia mm |
Thickness |
Over Diameter mm |
|
| 4C | 28 | 7/0.127 | 239.00 | 0.22 | 0.82 | 1.00 | 4.30 |
| 4C | 22 | 17/0.16 | 59.40 | 0.22 | 1.20 | 0.45 | 4.00 |
5C |
28 | 7/0.127 | 239.00 | 0.20 | 0.80 | 0.88 | 4.80 |
| 6C | 28 | 7/0.127 | 239.00 | 0.22 | 0.82 | 0.68 | 4.30 |
| 7C | 28 | 7/0.127 | 239.00 | 0.26 | 0.90 | 0.90 | 5.00 |
| 7C | 32 | 7/0.08 | 563.00 | 0.22 | 1.00 | 0.75 | 5.20 |
| 8C | 28 | 7/0.127 | 239.00 | 0.23 | 0.86 | 0.75 | 4.80 |
| 9C | 28 | 7/0.127 | 239.00 | 0.22 | 0.82 | 0.75 | 4.90 |
| 10C | 28 | 7/0.127 | 239.00 | 0.26 | 0.90 | 0.60 | 5.00 |
