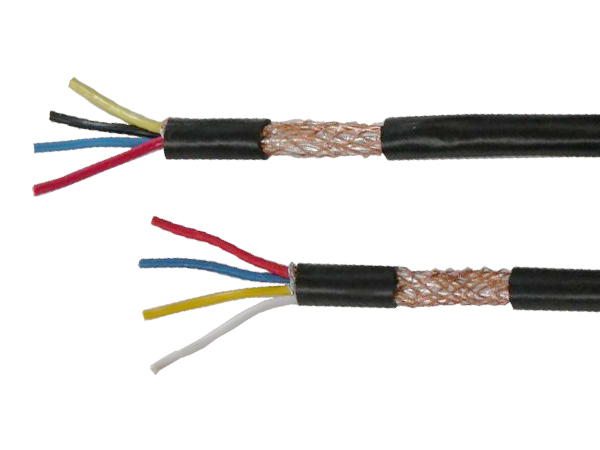

UL electron wire
Focus on production and sales+86-0769-85704089
|
|
|
|
|
♦Rated temperature:80℃
♦Rated voltage:300volts
♦Conductor makes single wire or twisted wire
♦Conductor can be plated first and then twisted and then plated
♦Environmental protection PP, PE insulation, PVC coating
♦Uniform thickness of wire to ensure easy stripping and cuttingpassed
♦VW-1 & CSA FT1 Vertical flame test
Suitable for internal wiring of electrical appliances and computer equipment
| UL Style & CSA Type |
Conductor | Insulation Thickness | Jacket Thickness |
Overall Diameter |
Stand Put-up | |||
| Line number | Number of wires/diameter | Material | Insulation Diameter |
Imperial | Metric | |||
| AWG | （NO./mm） | （mm） | （mm） | （mm） | ft/coil | m/coil | ||
| UL2725 CSA l A/B Stranded Twisted wire |
28/1P | 7/0.127 | PP or PE | 0.85 | 0.42 | 3.80 | 2000 | 610 |
28/2C |
7/0.127 | SR-PVC | 0.85 | |||||
| 28/1P | 7/0.127 | PP or PE | 0.85 | 0.60 | 4.20 | |||
| 26/2C | 7/0.160 | SR-PVC | 1.10 | |||||
| 28/1P | 7/0.127 | PP or PE | 0.85 | 0.60 | 4.50 | |||
| 22/2C | 7/0.254 | SR-PVC | 1.30 | |||||
