Your location  Home -> Products  ->  Computer peripheral wiring  ->  UL 20276

We actively respond to customers' product needs, strive to understand their real needs and provide them with solutions suitable for customers, and look forward to working closely with you. Welcome new customers to inquire!

Hotline：+86-0769-85704089
qq Mr Li qq Miss Wang

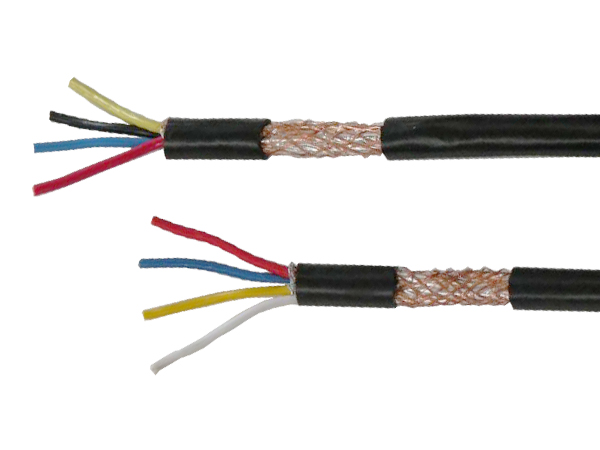

UL 20276

Product Details
Product Description

♦Rated temperature:80℃

♦Rated voltage:30volts

♦Standard: UL758.UL1581 and CSA C22.2 NO.210.2

♦Conductor makes stranded wire bare copper or tinned copper

♦Lead-free PVC or semi-rigid PVC insulation

♦Lead-free vinyl chloride coating

♦Tinned copper or bare soft copper winding shield

♦UL VW-1 & CSA Ft1Vertical flame test

Application

Applicable to internal and external wiring of level 2 system electronic equipment. Can substitute UL21100 UL21456

Specification

TYPE

 Conductor No.of Core

Insuation
No./mm

 Drain
Wire		 Spiral Shield Overall
Diameter		 Stand Put-up Conductor
Resistance at20℃
Line number Structure

materials

 coverage Imperial Metric

Copper without
plating

Tinnde
AWG Construction
（NO./mm）		 (mm) (No.mm)

material

 coverage （mm） ft/coil m/coil Ω/km Ω/km
UL 20276
(Stranded)
Twisted wire		 26 7/0.160 3P 1.00 .. AL 82% 6.40±0.20 2000 610 230 150
26 7/0.160 1C 1.00 .. AL 82% 6.40±0.20 2000 610 230 150
28 7/0.127 3P 0.63 7/0.160 AL 95% 4.70±0.15 2000 610 223 239
28 7/0.127 9C 0.63 7/0.160 AL 95% 4.70±0.15 2000 610 223 239
28 7/0.127 6P 0.63 7/0.127 AL 70% 4.70±0.15 2000 610 223 239
28 7/0.127 7P 0.63 .. AL 90% 5.30±0.20 2000 610 223 239
28 7/0.127 8P 0.63 7/0.127 AL 74% 5.00±0.20 2000 610 223 239
28 7/0.127 12P 0.63 7/0.200 AL 84% 6.70±0.20 2000 610 223 239
28 7/0.127 1C 0.63 7/0.200 AL 84% 6.70±0.20 2000 610 223 239
28 7/0.127 13P 0.63 7/0.200 AL 85% 7.00±0.20 2000 610 223 239
28 7/0.127 18P 0.63 .. AL 80% 7.40±0.20 2000 610 223 239
30 7/0.100 19P 0.60 7/0.127 AL 85% 8.50±0.20 2000 610 354 381
30 7/0.100 25P 0.60 7/0.127 AL 85% 9.50±0.30 2000 610 354 381
28 7/0.127 25P 0.63 .. AL 80% 8.20±0.20 2000 610 223 239

★："R","w"No such specification
