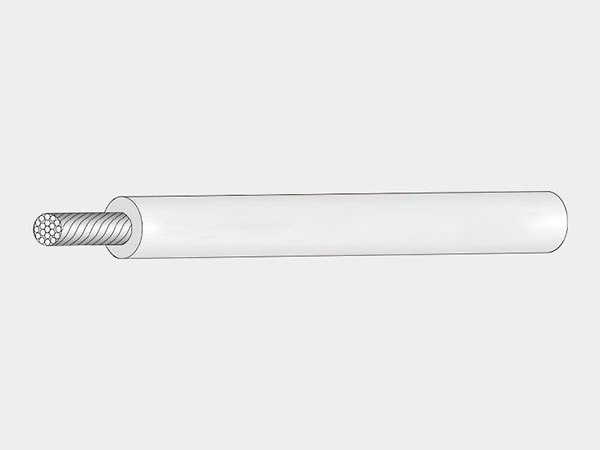

UL 1007

Product Details

Product Description

♦Rated temperature:80℃.Rated voltage:300volts

♦Tinned,annealed,stranded or solid copper xonductor 16-32 AWG

♦Color-coded PVC insulation

♦Resistant to acids,Oils,alkalis,moisture and fungus

♦Uniform thickness of wire to ensure easy stripping and cuttingpassed

♦UL VW-1 & CSA FT1 Vertical flame test

Application

♦For general purpose of internal wiring of electronicand electrical equipment

Specification

UL Style & CSA Type	Conductor		Insulation Thickness	Overall Diamete	Standard put-up		Max.Cond. Resistance at20X
	Line number	Number of wires/diameter	Insulation Thickness	Overall Diamete	Imperial	Metric	Max.Cond. Resistance at20X
	AWG	No./mm	mm	mm	ft/coil	m/coil	Ohm/kft/20℃
UL 1007 CSAI A (STRANDED) Twisted wire	30	7/0.100	(Minimum) 0.33AVG (average) 0.38	1.15±0.10	2000	610	381
	28	7/0.127		1.20±0.10			329
	26	7/0.160		1.35±0.10			150
	24	11/0.160		1.45±0.10			94.2
	22	17/0.160		1.60±0.10			59.4
	20	26/0.16		1.80±0.10			36.7
	18	41/0.16		2.05 土0.10			23.2
	16	26/0.254		2.35±0.10			14.6
UL 1007 CSAI A ITOP-COATED) Twist first	26	7/0.160		1.35±0.10			150
	24	7/0.203		1.45±0.10			94.2
	22	7/0.254		1.60±0.10			59.4
	20	26/0.16		1.80±0.10			36.7
	18	41/0.16		2.05±0.10			23.2
	16	7/0.488		2.35 ± 0.10			14.6
