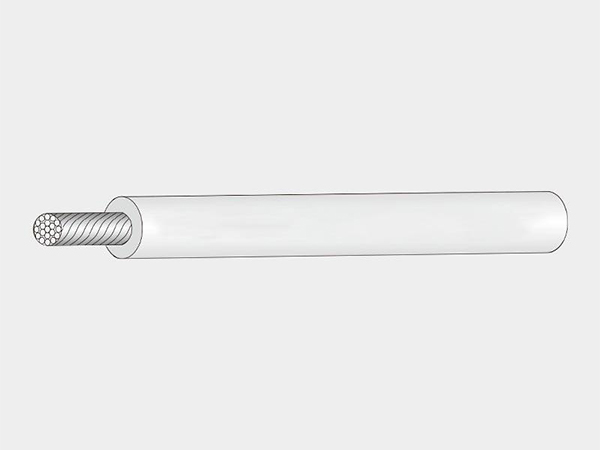

UL 1571

Product Details

Product Description

♦Rated temperature：80℃

♦Rated voltage:30volts

♦Tinned,annealed,stranded or solid copper xonductor Minimum MIN 50AWG

♦Conductor can be plated first, then twisted and then plated

♦Color-coded PVC insulation

♦Uniform thickness of wire to ensure easy stripping and cuttingpassed

♦UL VW-1 & CSA FT1 Vertical flame test

Application

♦Suitable for general electrical products

Specification table 1

UL Style & CSA Type	Conductor		Insulation Thickness	Spiral shield	jacket Thickness	Overall Diam	Stand Put-up		Max.Cond. Resistance at20X
	Line number	Number of wires/diameter	Insulation Thickness	Spiral shield	jacket Thickness	Overall Diam	Imperial	Metric	Max.Cond. Resistance at20X
	AWG	(No./mm)	(mm)	(mm)	(mm)	(mm)	ft/coil	m/coil	Ohm/kft/20℃
UL1571 (Stranded) Twisted wire	30	7/0.100	0.23	21/0.12	0.40	1.85±0.1	2000	610	381
	28	7/0.127		24/0.12		2.00±0.1			239
	26	7/0.160		26/0.12		2.10±0.1			150
	24	11/0.160		29/0.12		2.20±0.1			94.2
	22	17/0.160		33/0.12		2.30±0.1			59.4
	20	26/0.160		38/0.12		2.60±0.1			36.7
	18	41/0.160		45/0.12		2.80±0.1			23.2
	16	26/0.254		52/0.12		3.10±0.1			14.6

Specification table 2

UL Style & CSA Type	Conductor		Insulation Thickness	Overall Diam	Stand Put-up		Max.Cond. Resistance at20X
	Line number	Number of wires/diameter	Insulation Thickness	Overall Diam	Imperial	Metric	Max.Cond. Resistance at20X
	AWG	(No./mm)	(mm)	(mm)	ft/coil	m/coil	Ohm/kft/20℃
UL1571 (Stranded) Twisted wire	30	7/0.100	0.23	0.8±0.5	2000	610	381
	28	7/0.127		0.9±0.5			239
	26	7/0.160		1.0±0.5			150
	24	11/0.160		1.1±0.5			94.2
	22	17/0.160		1.3±0.5			59.4
	20	26/0.160		1.5±0.1			36.7
	18	41/0.160		1.8±0.1			23.2
	16	26/0.254		2.0±0.1			14.6
