♦Rated temperature: 80 ℃
♦Rated voltage: 300volts
♦Standard: UL758.UL1581 and CSA C22.2 NO.210
♦Conductors use 30-16AWG single or stranded bare copper or tinned copper
♦Lead-free PVC insulation
♦Uniform insulation thickness, easy to peel, easy to cut
♦Protests alkali, oil resistance, moisture resistance, mildew resistance, etc.
♦UL VW-1 & CSA FT1 Vertical flame test
♦Suitable for wiring of electronic and electrical equipment, such as miniature video cameras, optical components, commercial and medical equipment, etc.
TYPE | Conductor | Nom.Thick | Overall Diam |
Stand Put-up |
Conductor Resistanceat20℃ |
|||
AWG | Construction | Imperial | Metric | Copper | Tinned | |||
Line number | (No./mm) | (mm) | (mm) | ft/coil | m/coil | Ω/km | Ω/km | |

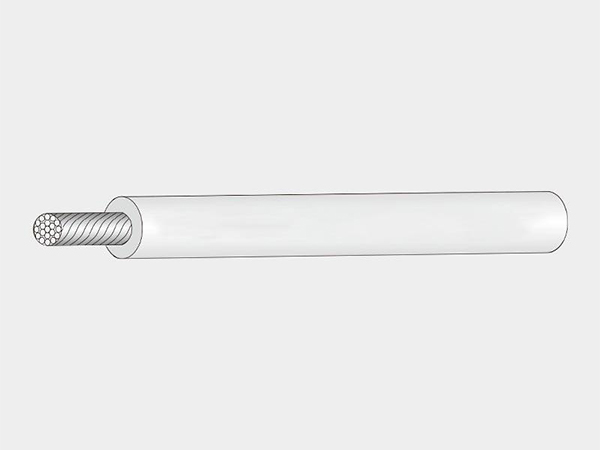

UL1095 (Stranded) Twisted wire |
30 | 7/0.100 | 0.34 | 1.0±0.05 | 2000 | 610 | 354 | 381 |
28 | 7/0.127 | 1.05±0.05 | 2000 | 610 | 223 | 239 | ||
26 | 7/0.160 | 1.15±0.05 | 2000 | 610 | 230 | 150 | ||
24 | 11/0.160 | 1.30±0.05 | 2000 | 610 | 87.6 | 94.2 | ||
22 | 17/0.160 | 1.45±0.05 | 2000 | 610 | 55.4 | 59.4 | ||
20 | 26/0.16 | 1.65±0.10 | 2000 | 610 | 34.6 | 36.7 | ||
18 | 41/0.16 | 1.85 土0.10 | 2000 | 610 | 21.8 | 23.2 | ||
16 | 26/0.254 | 2.20±0.10 | 1000 | 305 | 13.7 | 14.6 |
