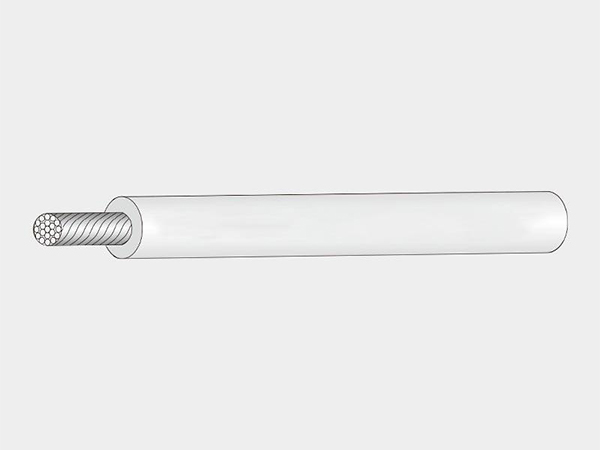

♦Rated temperature: 80 ° C, 90 ° C, 105 ° C Rated voltage: 600V OR 750V
♦Tinned,annealed,stranded or solid copper xonductor 30~90 AWG,Conductor 30AWG-2000kcmil
♦After the conductor may plate first,twists plates again
♦Color- -coded PVC insulation
♦Uniform thickness of wire to ensure easy stripping and cutting
♦passed UL VW-1 & CSA FT1 Vertical flame test
♦For intemal wiring of appliances
| UL Style & CSA Type |
Conductor | Insulation Thickness |
Overall Diamete |
Standard put-up |
Max.Cond. Resistance at20X |
||
| Line number | Number of wires/diameter | Imperial | Metric | ||||
| AWG | No./mm | mm | mm | ft/coil | m/coil | Ohm/kft/20℃ | |
|
UL 1015 CSAI A (STRANDED) Twisted wire |
26 | 7/0.160 | 0.79 | 2.05±0.1 | 2000 | 610 | 150 |
| 24 | 11/0.160 | 2.20±0.1 | 94.2 | ||||
| 22 | 17/0.160 | 2.35±0.1 | 59.4 | ||||
| 20 | 26/0.16 | 2.55±0.1 | 36.7 | ||||
| 18 | 41/0.16 | 2.80±0.1 | 23.2 | ||||
| 16 | 26/0.254 | 3.10±0.1 | 1000 | 305 | 14.6 | ||
| 14 | 41/0.254 | 3.50±0.1 | 8.96 | ||||
| 12 | 65/0.254 | 3.95 ±0.1 | 5.64 | ||||
| 10 | 105/0.254 | 5.05±0.15 | 3.546 | ||||
| UL 1015 CSAI A ITOP-COATED) Twist first |
22 | 7/0.254 | 2.35±0.1 | 2000 | 610 | 59.4 | |
| 20 | 26/0.16 | 2.55±0.1 | 36.7 | ||||
| 18 | 41/0.16 | 2.80±0.1 | 23.2 | ||||
