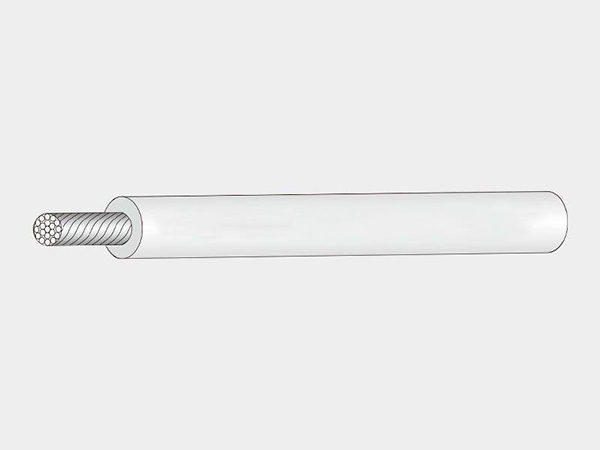

♦Rated temperature:80℃.Rated voltage:300volts
♦Tinned,annealed,stranded or solid copper xonductor 30~14 AWG
♦Semi-rigid SR-PVC insulation
♦Uniform thickness of wire to ensure easy stripping and cuttingpassed
♦UL VW-1 & CSA FT1 Vertical flame test
♦Suitable for computer, electronic and electrical equipment
| UL Style & CSA Type |
Conductor | Insulation Thickness |
Overall Diamete |
Standard put-up | Max.Cond. Resistance at20X |
||
| Line number | Number of wires/diameter | Imperial | Metric | ||||
| AWG | No./mm | mm | mm | ft/coil | m/coil | Ohm/kft/20℃ | |
|
UL 1061 CSAI A (STRANDED) Twisted wire |
30 | 7/0.100 | 0.28 | 0.8 | 2000 | 610 | 381 |
| 28 | 7/0.127 | 0.9 | 2000 | 610 | 239 | ||
| 26 | 7/0.160 | 1.0 | 2000 | 610 | 150 | ||
| 24 | 11/0.16 | 1.1 | 2000 | 610 | 94.5 | ||
| 22 | 17/0.16 | 1.3 | 2000 | 610 | 59.4 | ||
| 20 | 26/0.16 | 1.5 | 2000 | 610 | 36.7 | ||
| 18 | 41/0.16 | 1.7 | 2000 | 610 | 23.2 | ||
| 16 | 26/0.254 | 2.0 | 2000 | 610 | 14.6 | ||
