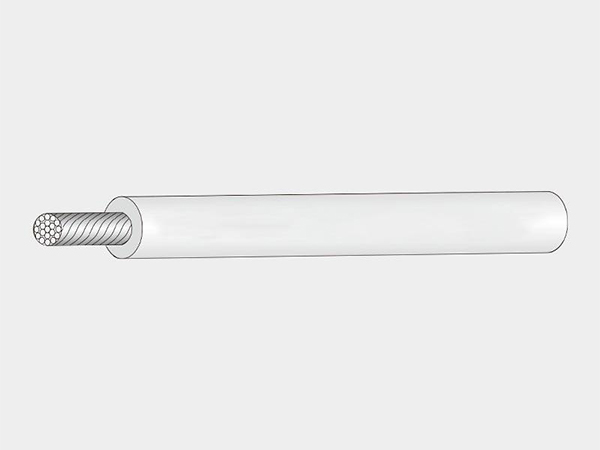

UL electron wire
Focus on production and sales+86-0769-85704089
|
|
|
|
|
♦Rated temperature：80℃,90℃, 105℃
♦Rated voltage：300volts
♦Conductor uses single or twisted wire, bare copper or tinned copper wire 30-2AWG
♦Conductor can be plated first, then twisted and then plated
♦Color-coded PVC insulation
♦Uniform thickness of wire to ensure easy stripping and cuttingpassed
♦UL VW-1 & CSA FT1 Vertical flame test
♦Suitable for general electrical products
| UL Style & CSA Type |
Conductor | Insulation Thickness |
Overall Diam | Stand Put-up | Max.cond.resistance at.20℃ |
||
| Line number | Number of wires/diameter | Imperial | Metric | OHM/kft/20℃ |
|||
| AWG | (No./mm) | (mm) | (mm) | ft/coil | m/coil | ||
| UL1569 (Stranded) Twisted wire |
30 | 7/0.100 | 0.38 | 1.10±0.10 | 2000 | 610 | 381 |
| 28 | 7/0.127 | 1.15±0.10 | 239 | ||||
| 26 | 7/0.160 | 1.30±0.10 | 150 | ||||
| 24 | 11/0.160 | 1.40±0.10 | 94.2 | ||||
| 22 | 17/0.160 | 1.6±0.10 | 59.4 | ||||
| 20 | 26/0.160 | 1.8±0.10 | 36.7 | ||||
| 18 | 41/0.16 | 2.05±0.10 | 23.2 | ||||
| 16 | 26/0.254 | 2.35±0.10 | 14.6 | ||||
