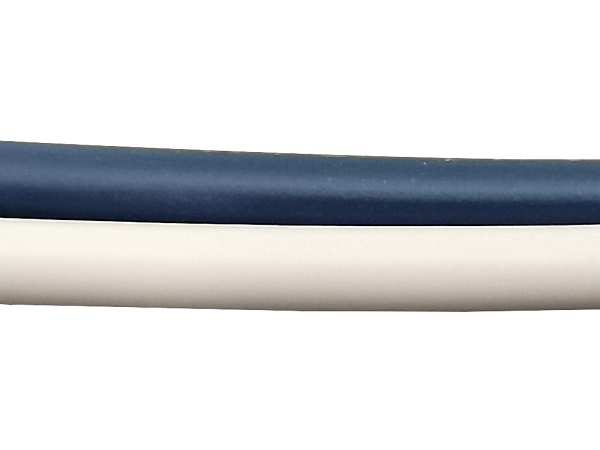

UL 1617

Product Details

Product Description

♦Rated temperature:105℃

♦Rated voltage:600volts

♦Tinned,annealed,stranded or solid copper xonductor

Is a reinforced connection line

♦Conductor can be plated first, then twisted and then plated

♦Environmental protection PVC insulation, PVC coating

♦Uniform thickness of wire to ensure easy stripping and cuttingpassed

♦UL VW-1 & CSA FT1 Vertical flame test

Application

♦Suitable for general electrical products

Specification

UL Style & CSA Type	Conductor		Insulation Thickness	jacket Thickness	Overall Diameter	Stand Put-up		Max.cond.resistance at.20℃
	Line number	Number of wires/diameter	Insulation Thickness	jacket Thickness	Overall Diameter	Imperial	Metric	Max.cond.resistance at.20℃
	AWG	(No./mm)	(mm)	(mm)	(mm)	ft/coil	m/coil	OHM/kft/20℃
UL 1617 CSAIA/B Stranded Twisted wire	26	7/0.160	0.76	0.38	2.8±0.10	2000	610	150
	24	11/0.160			3.0±0.10			94.2
	22	17/0.160			3.15±0.10			59.4
	20	26/0.16			3.35±0.10	1000	305	36.7
	18	41/0.16			3.60±0.10			23.2
	16	26/0.254			3.90±0.10			14.6
	10	105/0.254			5.85±0.15			8.96
UL 1617 CSA I A/B TOP-COATCD Twist first	22	7/0.254			3.15±0.10			59.4
	20	26/0.16			3.35±0.10			36.7
	18	41/0.16			3.60±0.10			23.2
