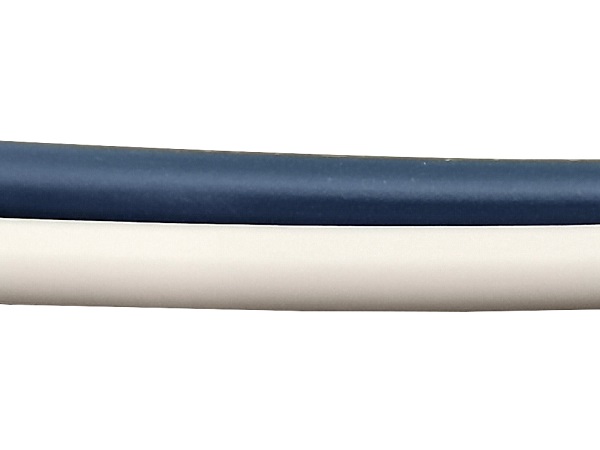

UL 1672

Product Details
Product Description

♦Rated temperature:105℃

♦Rated voltage:300volts

♦Standard: UL758.UL1581 and CSA C22.2 NO.210.2

♦Is a reinforced connection line

♦Lead-free PVC insulation

♦Uniform thickness of wire to ensure easy stripping and cuttingpassed

♦Resistant to acids,Oils,alkalis,moisture and fungus

♦UL VW-1 & CSA FT1 Vertical flame test

Application

♦Suitable for internal connection products of electronic and electrical equipment

♦Can be replaced by UL10937

Specification
TYPE Conductor Insulation
Thickness		 jacket
Thickness		 Overall Diameter Stand Put-up Conductor
Resistanceat20℃
Line number Number of wires/diameter Imperial Metric Copper Tinned
AWG (No./mm) (mm) (mm) (mm) ft/coil m/coil Ω/km Ω/km
UL 1672
AWM T1
(Stranded)
Twisted wire		 30 7/0.100 0.41 0.41 2.10±0.10 2000 610 354 381
28 7/0.127 2.20±0.10 223 239
26 7/0.160 2.30±0.10 230 150
24 11/0.160 2.50±0.10 87.6 94.2
22 17/0.160 2.60±0.10 55.4 59.4
20 26/0.16 2.80±0.10 34.6 36.7
18 41/0.16 3.00±0.10 21.8 23.2
16 26/0.254 3.40±0.10 13.7 14.6
14 41/0.254 3.70±0.10 8.62 8.96
12 65/0.254 4.20±0.15 5.43 5.64
10 105/0.254 4.90±0.15 3.409 3.546
