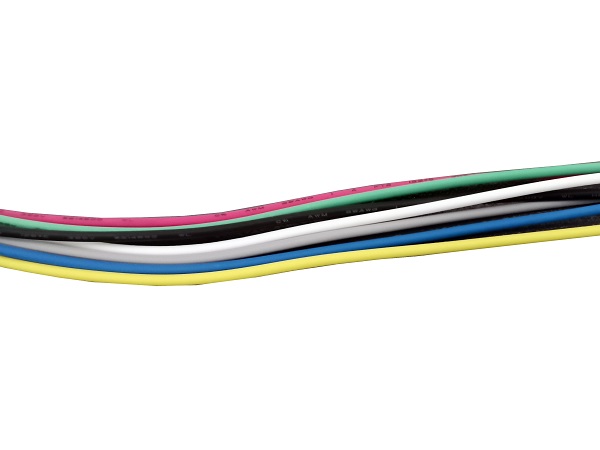

UL 3173

Product Details
Product description

♦Rated voltage:600volts

♦Temperature range：-40℃~+125℃

♦Conductor：26-9AWGTinned copper wire

♦Insulator: cross-linked polyolefin

♦Tolerance of outer diameter：±0.10mm

♦Color: black-brown-red-orange-yellow-green-blue-purple-gray-white-transparent-yellow / green etc.

Characteristic

The wire is soft, easy to process, cold-resistant, aging-resistant, UV-resistant, stable, low-smoke and halogen-free, passes VW-1, and meets UL758, UL1581, and RoHS requirements.

Scope of application

Applicable to connection lines for household appliances, lighting fixtures, electronic equipment, temperature sensors, military products, metallurgical chemicals, automobiles and ships, nuclear industry, power installation, etc.

Specification
AWG Conductor Insulation Maxcond.
Resistance
20℃Ω/km

 Allowable
Current
reference		 Wire weight
kg/km		 Unit
length
ft/m.
Number of lines
NO		 Wire diameter
mm		 Diameter
OD		 Thickness
Thick		 Diameter
OD
26 7 0.16 0.50 0.76 2.00 150 3.0 5.75 4000/1220
24 11 0.16 0.60 0.76 2.10 94.2 4.0 6.85 3000/915
22 17 0.16 0.80 0.76 2.30 59.4 6.0 8.89 3000/915
20 26 0.16 1.00 0.76 2.50 36.7 8.0 11.53 3000/915
18 41 0.16 1.20 0.76 2.70 23.2 13 14.7 3000/915
16 26 0.254 1.50 0.76 3.00 14.6 18 20.5 2000/610
14 41 0.254 1.90 0.76 3.50 8.96 24 30.0 2000/610
12 65 0.254 2.40 0.76 4.00 5.64 30 43.5 1000/305
10 105 0.254 3.00 0.76 4.50 3.546 40 63.8 1000/305
9 133 0.254 3.40 0.76 5.00 2.813 46 79.9 1000/305
