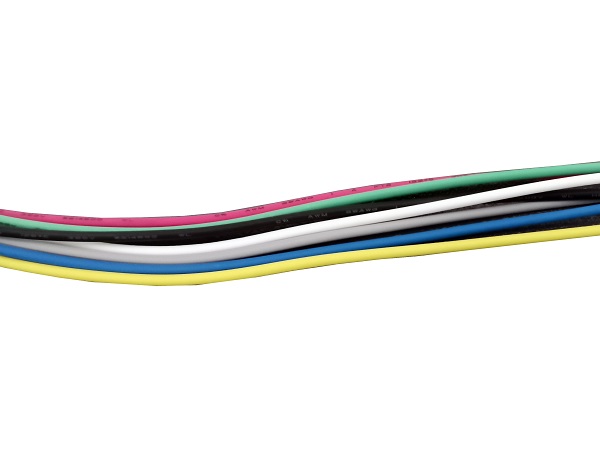

UL 3271

Product Details

Product description

♦Rated voltage:600V AC 750V DC

♦Temperature range:-40℃~+125℃

♦Conductor: 30 ~ 2000kcmil tin-plated, bare copper, silver-plated copper wire

♦Insulator: cross-linked polyolefin material

♦Tolerance of outer diameter: ± 0.10mm

♦Color: black-brown-red-orange-yellow-green-blue-purple-gray-white-yellow / green etc.

Characteristic

The wire is soft, easy to process, cold-resistant, aging-resistant, UV-resistant, stable, low-smoke and halogen-free, passes VW-1, and meets UL758, UL1581, and RoHS requirements.

Scope of application

Applicable to connection lines for household appliances, lighting fixtures, electronic equipment, temperature sensors, military products, metallurgical chemicals, automobiles and ships, nuclear industry, power installation, etc.

Specification

AWG	Conductor			Insulation		Maxcond Resistance 20℃ Ω/km	Allowable Current reference	kg/km	Unit length ft/m
AWG	Number of lines NO.	Cable diameter mm	Diameter OD	Thickness Thick	Diameter OD	Maxcond Resistance 20℃ Ω/km	Allowable Current reference	kg/km	Unit length ft/m
30	7	0.10	0.30	0.76	1.80	381	1.5	4.23	4000/1200
28	7	0.12	0.36	0.76	1.85	239	2.0	4.64	4000/1200
26	7	0.16	0.50	0.76	2.00	150	3.0	5.75	4000/1200
24	11	0.16	0.60	0.76	2.10	94.2	4.0	6.85	3000/915
22	17	0.16	0.80	0.76	2.30	59.4	6.0	8.89	3000/915
20	26	0.16	1.00	0.76	2.50	36.7	8.0	11.5	3000/915
18	41	0.16	1.20	0.76	2.70	23.2	13	14.7	3000/915
16	26	0.254	1.50	0.76	3.00	14.6	18	20.5	2000/610
14	41	0.254	1.90	0.76	3.50	8.96	24	30.0	2000/610
12	65	0.254	2.40	0.76	4.00	5.64	30	43.5	1000/305
10	105	0.254	3.00	0.76	4.50	3.546	40	63.8	1000/305
9	133	0.254	4.00	0.76	5.62	2.813	46	87.7	1000/305
8	133	0.280	4.40	1.20	6.80	2.23	59	116	Order requirements
7	133	0.310	4.90	1.20	7.30	1.768	72	138	Order requirements
6	133	0.354	5.40	1.20	7.80	1.403	84	170	Order requirements
5	133	0.400	6.10	1.20	8.50	1.113	96	210	Order requirements
4	133	0.446	7.00	1.20	9.40	0.882	110	260	Order requirements
3	133	0.500	7.90	1.20	10.30	0.78	123	321	Order requirements
2	133	0.562	8.80	1.20	11.20	0.55	151	395	Order requirements
1	133	0.631	9.90	1.40	12.7	0.48	164	502	Order requirements
1/0	133	0.710	11.1	1.40	13.9	0.39	188	622	Order requirements
2/0	133	0.800	12.6	1.40	15.4	0.31	200	779	Order requirements
3/0	133	0.900	14.1	1.40	16.9	0.24	255	972	Order requirements
4/0	133	1.000	15.7	1.40	18.5	0.19	310	1186	Order requirements
