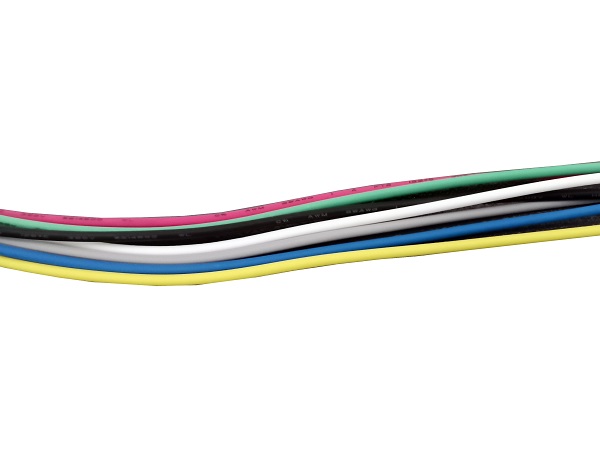

UL 3287

Product Details

Product description

♦Rated voltage:600volts

♦Temperature range:-40℃~+105℃

♦Conductor: 30 ~ 10AwG tinned copper wire

♦Insulator: cross-linked polyolefin

♦Tolerance of outer diameter:±0.10mm

♦Color: Black-Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Yellow / Green etc.

Characteristic

The wire is soft, easy to process, cold-resistant, aging-resistant, UV-resistant, stable, low-smoke and halogen-free, passes VW-1, and meets UL758, UL1581, and RoHS requirements.

Scope of application

Applicable to connection lines for household appliances, lighting fixtures, electronic equipment, temperature sensors, military products, metallurgical chemicals, automobiles and ships, nuclear industry, power installation, etc.

Specification

AWG	Conductor		Insulation		Electrical Characteristi		Packing
AWG	Conductor construction NO. xΦmm	Diameter mm	Insulation Thickness mm	Over Diameter mm	Conductor Resistance 20℃ ohm/km	Permissible ampacity 2O℃-AMR	Mt/coils
30	7×0.100	0.31	0.76	1.83	381	0.64	610
28	7×0.127	0.37	0.76	1.89	239	1.01	610
26	7×0.160	0.49	0.76	2.01	150	1.61	305
24	11×0.160	0.61	0.76	2.13	94.2	2.57	305
22	17×0.160	0.76	0.76	2.28	59.4	4.36	305
20	26×0.16	0.95	0.76	2.47	36.7	6.94	305
18	41×0.16	1.17	0.76	2.69	23.2	11.01	305
16	26×0.254	1.50	0.76	3.02	14.6	17.52	305
14	41×0.254	1.90	0.76	3.42	8.96	27.84	305
12	65×0.254	2.33	0.76	3.85	5.64	44.20	200
10	105×0.254	3.01	0.76	4.53	3.546	70.38	100
