Your location  Home -> Products  ->  Low-smoke halogen-free wire  ->  UL 3266

We actively respond to customers' product needs, strive to understand their real needs and provide them with solutions suitable for customers, and look forward to working closely with you. Welcome new customers to inquire!

Hotline：+86-0769-85704089
qq Mr Li qq Miss Wang

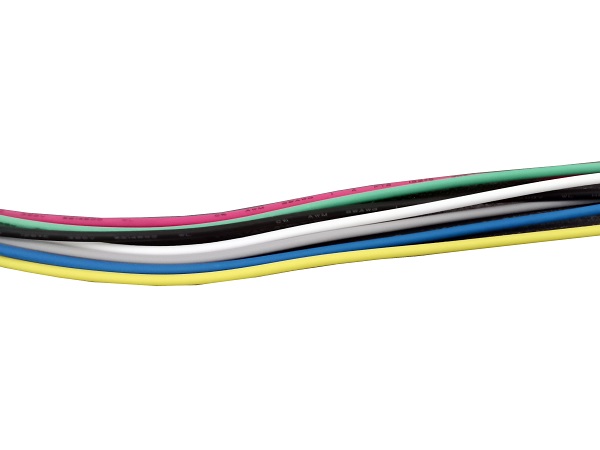

UL 3266

Product Details
Product Description

♦Rated voltage:300volts

♦Rated temperature:125℃

♦Tinned,annealed,stranded or solid copper xonductor 30~10 AWG

♦Conductor can be plated first, then twisted and then plated

♦ XLPE insulation, minimum 13mi ls, minimum average 15mi ls

♦ Use standard thickness, easy to peel, easy to cut off

Able to pass UL level fire test

Product application

Suitable for general computer and electrical equipment

Specification
UL Style
&
CSA Type		 Conductor Insulation
Thickness		 Overall Diam Max.cond.resistance
at.20℃		 Stand Put-up
Line number Number of wires / diameter Conductor diameter Imperial Metric
AWG （NO./mm）

（mm）

（mm)

 （mm） Bare
Copper		 Tinned
Copper		 ft/coil m/coil
UL3266
Stranded
Twisted wire		 32 7/0.080 0.240 0.38 1.00 542.0 563.0 2000 610
30 7/0.100 0.300 0.38 1.10 354.0 381.0
28 7/0.127 0.380 0.38 1.20 223.0 239.0
26 7/0.160 0.490 0.38 1.30 140.0 150.0
24 11//0.160 0.610 0.38 1.40 87.6 94.2
22 17/0.160 0.760 0.38 1.60 55.4 59.4
20 26/0.16 0.950 0.38 1.80 34.6 36.7
18 41/0.16 1.210 0.38 2.10 21.8 23.2
16 26/0.254 1.490 0.38 2.30 13.7 14.6
14 41/0.254 1.880 0.38 2.70 8.62 8.96
12 65/0.254 2.370 0.38 3.20 5.43 5.64 1000 305
10 105/0.254 3.000 0.38 3.90 3.409 3.546
