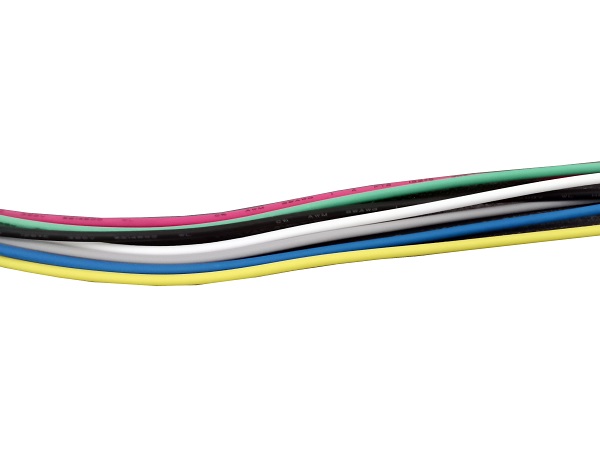

UL 3199

Product Details
product description

♦Rated voltage: 300V

♦Temperature range: -40 ℃ ~ + 105 ℃

♦Conductor: 32 ~ 10AWG tinned copper wire

♦Insulator: cross-linked polyolefin

♦Tolerance of outer diameter: ± 0.10mm

♦Color: Black-Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Yellow / Green etc.

characteristic

The wire is soft, easy to process, cold-resistant, aging-resistant, UV-resistant, stable, low-smoke, halogen-free, passes VW-1, meets UL758, UL1581, and RoHS

Scope of application

Suitable for household appliances, lighting fixtures, electronic equipment, temperature sensing Connection lines for aircraft, military products, metallurgy and chemical industry, automobiles and ships, nuclear industry, power installation, etc.

specification
Line number
AWG
 Conductor Insulation Electrical Characteristic Packing
Conductor
construction
NO. xΦmm		 Diameter
mm		 Insulation
Thickness
mm		 Over
Diameter
mm		 Conductor
Resistance 20℃
ohm/km		 Permissible
ampacity
2O℃-AMR		 Mt/coils
30 7×0.100 0.31 0.38 1.07 318 0.64 610
28 7×0.127 0.37 0.38 1.13 239 1.01 610
26 7×0.160 0.49 0.38 1.25 150 1.61 610
24 11×0.160 0.61 0.38 1.37 94.2 2.57 610
22 17×0.160 0.76 0.38 1.52 59.4 4.36 610
20 26×0.16 0.95 0.38 1.71 36.7 6.94 610
18 41×0.16 1.17 0.38 1.93 23.2 11.01 610
16 26×0.254 1.50 0.38 2.26 14.6 17.52 305
14 41×0.254 1.90 0.38 2.66 8.96 27.84 305
12 65×0.254 2.33 0.38 3.09 5.64 44.20 305
10 105×0.254 3.01 0.38 3.77 3.546 70.38 305
