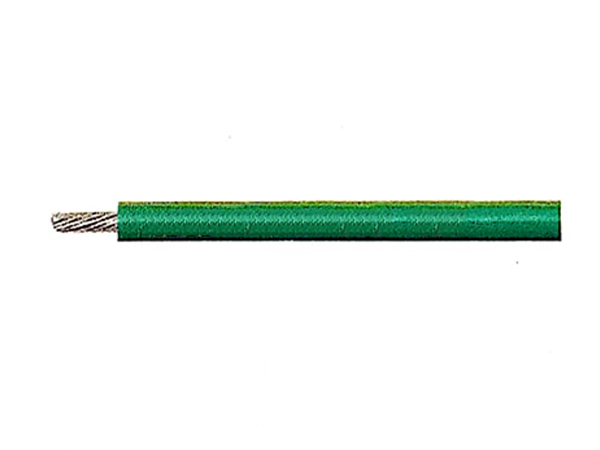

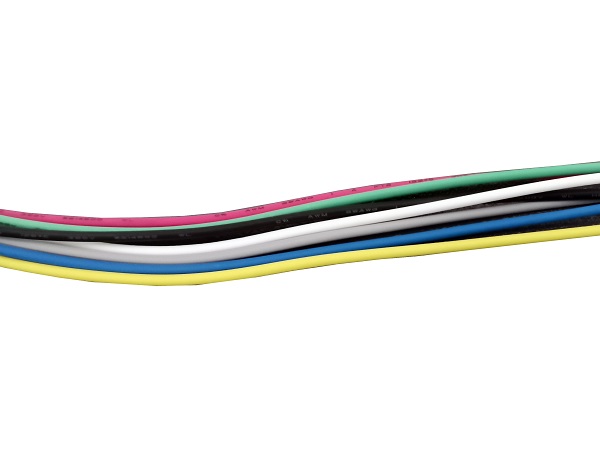

UL 3265

Product Details

Product Description

♦Rated voltage:150volts

♦Rated temperature:125℃

♦Passed UL VW-1 and flame retardant FT1 / FT2 vertical combustion test

♦Conductor: single or stranded bare copper or tinned copper

♦Insulator: XL-PE insulation

♦Implementation standards:UL758、 UL1581

Applications

For internal wiring of electronic and electrical equipment

Specification

AWG	Conductor		Insulation		Packing
AWG	Conductor construction NO. xΦmm	20℃ Resistance Ω/KM	Insulation Thickness mm	Over Diameter mm	Mt/coils
30	7/0.100	150.00	0.25	0.85	610
28	7/0.127	94.20	0.25	0.95	610
26	7/0.160	150.00	0.25	1.02	610
24	11/0.160	94.20	0.25	1.15	610
22	17/0.160	59.40	0.25	1.3	610
20	26/0.16	36.70	0.25	1.5	610
18	41/0.16	23.20	0.25	1.8	610
16	26/0.254	14.60	0.25	2.05	305
14	41/0.254	8.96	0.25	2.5	305
12	65/0.254	5.64	0.25	3.0	305
10	105/0.254	3.55	0.25	3.8	305
