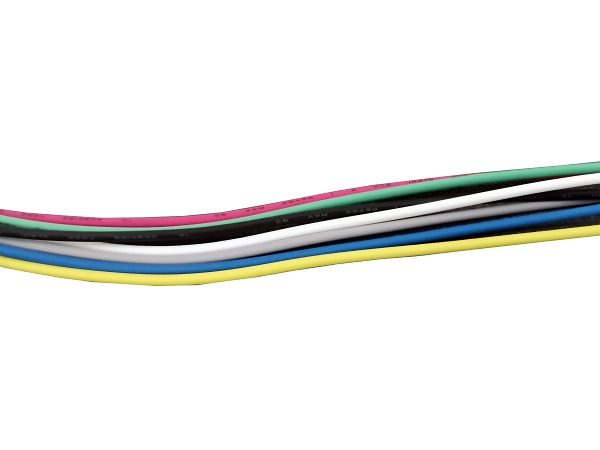

UL 3289

Product Details

Product description

♦Rated voltage:600volts

♦Temperature range:-40℃~+105℃

♦Conductor: 30 ~ 10AwG tinned copper wire

♦Insulator: cross-linked polyolefin

♦Tolerance of outer diameter:±0.10mm

♦Color: Black-Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Yellow / Green etc.

Characteristic

The wire is soft, easy to process, cold-resistant, aging-resistant, UV-resistant, stable, low-smoke and halogen-free, passes VW-1, and meets UL758, UL1581, and RoHS requirements.

Scope of application

Applicable to connection lines for household appliances, lighting fixtures, electronic equipment, temperature sensors, military products, metallurgical chemicals, automobiles and ships, nuclear industry, power installation, etc.

Specification

AWG	Conductor			Insulation		Maxcond Resistance 20℃ Ω/km	Allowable Current reference	kg/km	Unit length ft/m
AWG	NO.	mm	OD	Thick	OD	Maxcond Resistance 20℃ Ω/km	Allowable Current reference	kg/km	Unit length ft/m
30	7	0.10	0.30	0.76	1.80	381	1.5	4.23	4000/1220
28	7	0.12	0.36	0.76	1.85	239	2.0	4.64	4000/1220
26	7	0.16	0.50	0.76	2.00	150	3.0	5.75	4000/1220
24	11	0.16	0.60	0.76	2.10	94.2	4.0	6.85	3000/915
22	17	0.16	0.80	0.76	2.30	59.4	6.0	8.89	3000/915
20	26	0.16	1.00	0.76	2.50	36.7	8.0	11.5	3000/915
18	41	0.16	1.20	0.76	2.70	23.2	13	14.7	3000/915
16	26	0.254	1.50	0.76	3.00	14.6	18	20.5	2000/610
14	41	0.254	1.90	0.76	3.50	8.96	24	30.0	2000/610
12	65	0.254	2.40	0.76	4.00	5.64	30	43.5	1000/305
10	105	0.254	3.00	0.76	4.50	3.546	40	63.8	1000/305
9	133	0.254	3.40	0.76	5.00	2.813	46	79.9	1000/305
8	133	0.280	3.80	1.20	6.20	2.23	59	107	Order requirements
7	133	0.310	4.20	1.60	7.40	1.768	72	140	Order requirements
6	133	0.354	4.80	1.60	8.00	1.403	84	173	Order requirements
5	133	0.400	5.40	1.60	8.60	1.113	96	212	Order requirements
4	133	0.446	6.00	1.60	9.20	0.882	110	256	Order requirements
3	133	0.500	6.80	1.60	10.0	0.78	123	313	Order requirements
2	133	0.562	7.50	1.60	10.7	0.55	151	382	Order requirements
1	133	0.631	8.50	2.00	12.5	0.48	164	496	Order requirements
1/0	133	0.710	9.50	2.00	13.5	0.39	188	609	Order requirements
2/0	133	0.800	10.60	2.00	14.6	0.31	200	754	Order requirements
3/0	133	0.900	12.0	2.00	16.0	0.24	255	935	Order requirements
4/0	133	1.000	13.5	2.00	17.5	0.19	310	1142	Order requirements
