♦Rated temperature:-40~+105℃，Rated voltage:300V

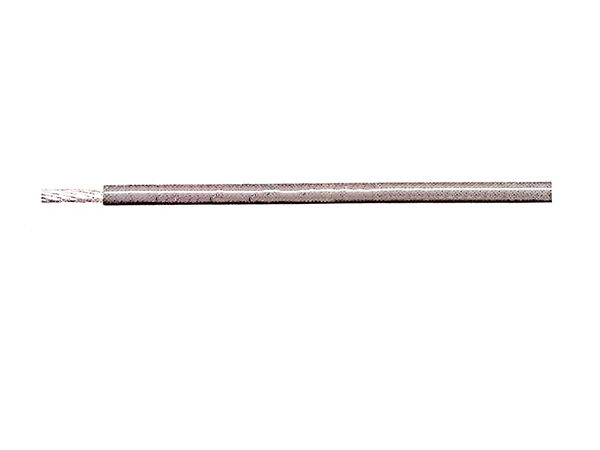

♦Conductor: minimum 40AWG single or twisted wire with bare copper or tinned copper wire
♦Insulation: FRPE, XLPE halogen-free cross-linked flame-resistant polyethylene
♦Standards: UL758, UL1581, CSA, SGS. Passes UL VW-1 and CUL CSA FT1 vertical flame test
♦Use standard thickness, easy to peel and cut. Tolerance -0.06 + 0.25
♦Has excellent thermal stability and mechanical wear resistance and electrical insulation properties, can resist strong acid, corrosion resistance, fire resistance and non-combustibility, high oxygen index, low smoke and halogen, no aging
The wire is soft, easy to process, cold-resistant, aging-resistant, UV-resistant, and stable in performance Low-smoke, halogen-free, pass VW-1, meet UL758, UL1581, RoHS requirements
Scope of application
Widely used in aviation, military products, metallurgy, petroleum, electronics and electricity
Gas, instrumentation, household appliances, lighting, transformers
And motor leads, automotive wires
| AWG | Conductor | Insulation | Maxcond Resistance 20℃ Ω/km |
Allowable Current reference |
kg/km | Unit length ft/m |
|||
| NO. | mm | OD | Thick | OD | |||||
| 40 | 7 | 0.03 | 0.09 | 0.13 | 0.34 | 1750 | 0.3 | 0.20 | 4000/1220 |
| 38 | 7 | 0.04 | 0.12 | 0.13 | 0.37 | 1350 | 0.4 | 0.26 | 4000/1220 |
| 36 | 7 | 0.05 | 0.15 | 0.13 | 0.40 | 997 | 0.5 | 0.32 | 4000/1220 |
| 34 | 7 | 0.06 | 0.18 | 0.13 | 0.43 | 880 | 0.6 | 0.40 | 4000/1220 |
| 32 | 7 | 0.08 | 0.25 | 0.13 | 0.50 | 589 | 0.6 | 0.56 | 4000/1220 |
| 30 | 7 | 0.10 | 0.30 | 0.13 | 0.55 | 377 | 1.5 | 0.77 | 4000/1220 |
| 28 | 7 | 0.12 | 0.35 | 0.13 | 0.60 | 237 | 2.0 | 1.02 | 4000/1220 |
| 26 | 7 | 0.16 | 0.50 | 0.25 | 1.00 | 152 | 3.0 | 2.24 | 4000/1220 |
