♦Rated voltage:600V AC/750V DC
♦Temperature range:-40℃〜+150℃

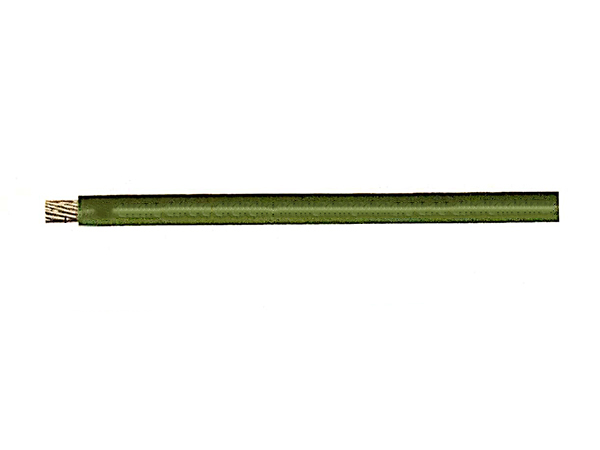

♦Conductor: 30-4 / 0AWG tinned copper wire
♦Insulator: cross-linked polyolefin
♦Tolerance of outer diameter: ± 0.10mm

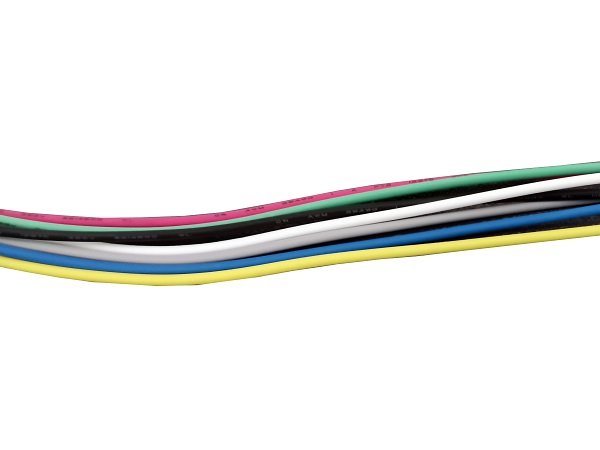

♦Color: Black-Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Yellow / Green etc.
The wire is soft, easy to process, cold-resistant, aging-resistant, UV-resistant, stable, low-smoke and halogen-free, passes VW-1, and meets UL758, UL1581, and RoHS requirements.
Scope of application
Suitable for connecting wires for household appliances, lighting fixtures, electronic equipment, temperature sensors, military products, metallurgy and chemical industry, automobiles and ships, nuclear industry, power installation, etc.
AWG | Conductor | Insulation | Maxcond Resistance 20℃ Ω/km |
Allowable Current reference |
kg/km | Unit length ft/m |
|||
NO. | mm | OD | Thick | OD | |||||
30 | 7 | 0.10 | 0.30 | 0.76 | 1.80 | 381 | 1.5 | 4.23 | 4000/1220 |
28 | 7 | 0.12 | 0.36 | 0.76 | 1.85 | 239 | 2.0 | 4.64 | 4000/1220 |
26 | 7 | 0.16 | 0.50 | 0.76 | 2.00 | 150 | 3.0 | 5.75 | 4000/1220 |
24 | 11 | 0.16 | 0.60 | 0.76 | 2.10 | 94.2 | 4.0 | 6.85 | 3000/915 |
22 | 17 | 0.16 | 0.80 | 0.76 | 2.30 | 59.4 | 6.0 | 8.89 | 3000/915 |
20 | 26 | 0.16 | 1.00 | 0.76 | 2.50 | 36.7 | 8.0 | 11.5 | 3000/915 |
18 | 41 | 0.16 | 1.20 | 0.76 | 2.70 | 23.2 | 13 | 14.7 | 3000/915 |
16 | 26 | 0.254 | 1.50 | 0.76 | 3.00 | 14.6 | 18 | 20.5 | 2000/610 |
14 | 41 | 0.254 | 1.90 | 0.76 | 3.50 | 8.96 | 24 | 30.0 | 2000/610 |
12 | 65 | 0.254 | 2.40 | 0.76 | 4.00 | 5.64 | 30 | 43.5 | 1000/305 |
10 | 105 | 0.254 | 3.00 | 0.76 | 4.50 | 3.546 | 40 | 63.8 | 1000/305 |
9 | 133 | 0.254 | 3.40 | 0.76 | 5.00 | 2.813 | 46 | 79.9 | 1000/305 |
8 | 133 | 0.280 | 3.80 | 1.20 | 6.20 | 2.23 | 59 | 107 | Order requirements |
7 | 133 | 0.310 | 4.20 | 1.20 | 6.60 | 1.768 | 72 | 127 | Order requirements |
6 | 133 | 0.354 | 4.80 | 1.20 | 7.20 | 1.403 | 84 | 159 | Order requirements |
5 | 133 | 0.400 | 5.40 | 1.20 | 7.80 | 1.113 | 96 | 197 | Order requirements |
4 | 133 | 0.446 | 6.00 | 1.20 | 8.40 | 0.882 | 110 | 239 | Order requirements |
3 | 133 | 0.500 | 6.80 | 1.50 | 9.80 | 0.78 | 123 | 309 | Order requirements |
2 | 133 | 0.562 | 7.50 | 1.50 | 10.5 | 0.55 | 151 | 377 | Order requirements |
1 | 133 | 0.631 | 8.50 | 2.00 | 12.5 | 0.48 | 164 | 496 | Order requirements |
1/0 | 133 | 0.710 | 9.50 | 2.00 | 13.5 | 0.39 | 188 | 609 | Order requirements |
2/0 | 133 | 0.800 | 10.60 | 2.00 | 14.6 | 0.31 | 200 | 754 | Order requirements |
3/0 | 133 | 0.900 | 12.0 | 2.00 | 16.0 | 0.24 | 255 | 935 | Order requirements |
4/0 | 133 | 1.000 | 13.5 | 2.00 | 17.5 | 0.19 | 310 | 1142 | Order requirements |
