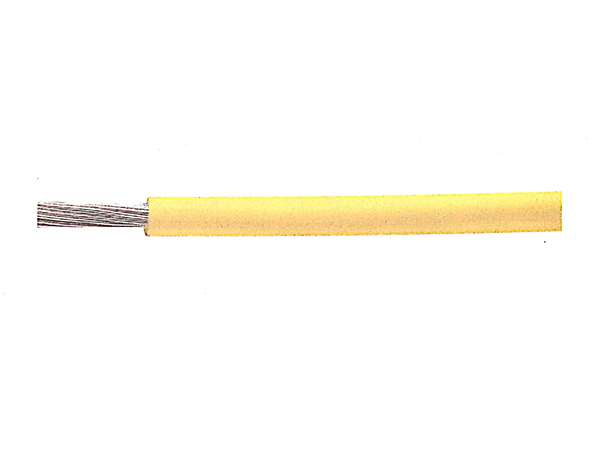

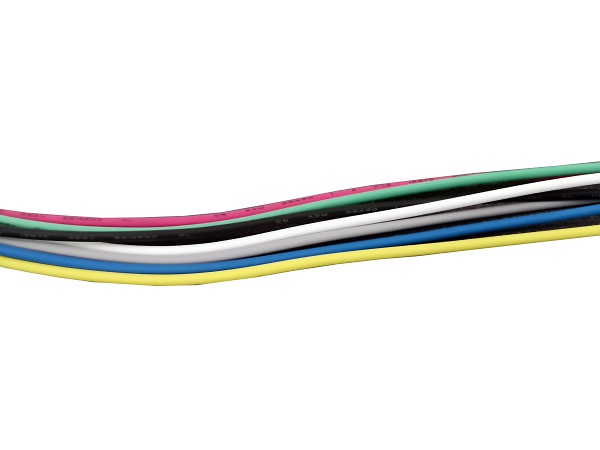

UL 3385

Product Details
Product Description

♦Rated temperature:105℃

♦Rated voltage:300V

♦Conductor using single or twisted wire, bare copper or tinned copper wire 32-10AWG

♦Conductor can be plated first, then twisted and then plated

♦XLPE insulation, minimum 13mils, minimum average 15mils

♦Uniform thickness of wire to ensure easy stripping and cuttingpassed

♦UL VW-1 Vertical flame test

Application

Suitable for general computer and electrical equipment

Specification
UL Style
&
CSA Type
Conductor Insulation Thickness Overall
Diameter
Max.cond.
resistance at.20℃
Ω/km/20℃
Stand Put-up
Line number Number of wires/diameter Conductor diameter Imperial Metric
AWG (NO./mm)

(mm)

(mm)

(mm) Bare
Copper
Tinned
Copper
ft/coil m/coil
UL3385
Stranded
Twisted wire
32 7/0.080 0.240 0.38 1.00 542.0 563.0 2000 610
30 7/0.100 0.300 0.38 1.10 354.0 381.0
28 7/0.127 0.380 0.38 1.20 223.0 239.0
26 7/0.160 0.490 0.38 1.30 140.0 150.0
24 11//0.160 0.610 0.38 1.40 87.6 94.2
22 17/0.160 0.760 0.38 1.60 55.4 59.4
20 26/0.16 0.950 0.38 1.80 34.6 36.7
18 41/0.16 1.210 0.38 2.10 21.8 23.2
16 26/0.254 1.490 0.38 2.30 13.7 14.6
14 41/0.254 1.880 0.38 2.70 8.62 8.96
12 65/0.254 2.370 0.38 3.20 5.43 5.64 1000 305
10 105/0.254 3.000 0.38 3.90 3.409 3.546
