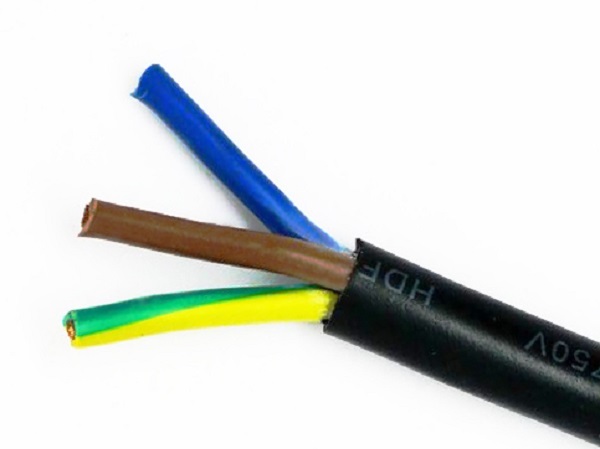

UL / CSA SJT SJTW Round Power Cord

Product Details
Unshielded
Product Description

♦Rated temperature:60℃、75℃、90℃、105℃.Rated voltage:300volts

♦Conductor using bare soft copper stranded wire

♦Color-coded PVC insulation

♦Waterproof PVC coating

♦Isolation layer

♦SJT-R wear resistance, SJTW low temperature resistance

♦SJTW passed CSA low temperature test

♦Core wire gluing and filling material

♦UL VW-1 & CSA FT1 Vertical flame test

Application

Mobile tools, washing machines, waxing machines, shakers, lamps, therapeutic equipment, dishwashers, office machinery

Shielded
Description

♦Rated temperature:60℃、75℃、90℃、105℃.Rated voltage:300volts

♦Conductor using bare soft copper stranded wire

♦Color-coded PVC insulation

♦Core wire gluing and filling material

♦Aluminum foil Mylar tape isolation

♦The shielding rate of bare soft copper wire braid: 85%

♦VW-1 Vertical flame test

Application

Used in computer power supply line, can remove EMI and RFI interference

Specification
UL Style
&
CSA Type		 Conductor Insulation
Thickness		 Braid
Shield		 Thickness Over
Diameter		 Stand Put-up
Line number Number of wires/diameter Imperial Metric
AWG No./mm mm No./mm mm mm ft/coil m/coil
SJT（R）
SJTW
（Unshielded）		 18×2C 41/0.160 0.76 -- 0.76 7.3±0.20 500 152.5
16×2C 26/0.254 -- 8.1±0.20 500 152.5
14×2C 41/0.254 -- 8.7±0.20 500 152.5
12×2C 65/0.254 -- 1.14 9.9±0.20 500 152.5
10×2C 105/0.254 1.14 -- 1.52 13.7±0.20 500 152.5
18×3C* 41/0.160 0.76 -- 0.76 7.8±0.20 500 152.5
16×3C* 26/0.254 -- 8.5±0.20 500 152.5
14×3C 41/0.254 -- 9.3±0.30 500 152.5
12×3C 65/0.254 -- 1.14 10.8±0.30 500 152.5
10×3C 105/0.254 1.14 -- 1.52 14.4±0.30 500 152.5
SJT
（shielded）		 18×3C 41/0.160 0.76 24/7/0.127 0.76 8.6±0.30 500 152.5
16×3C 26/0.254 24/7/0.127 9.3±0.30 500 152.5
14×3C 41/0.254 24/7/0.160 10.3±0.30 500 152.5

*:SJT-ROnly this specification, this 18AWG × 3C specification must be filled
