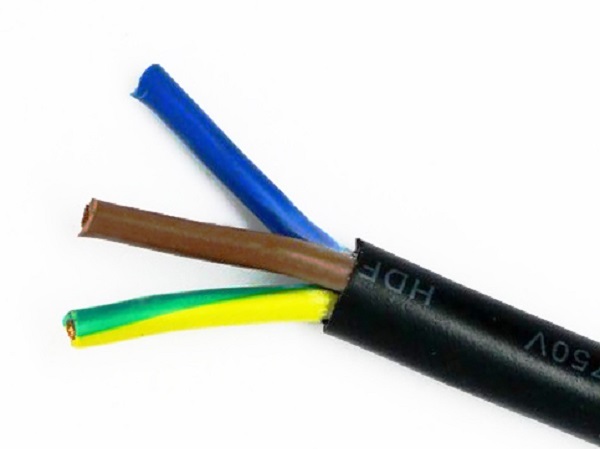

♦Rated temperature:60℃、75℃、90℃、105℃.Rated voltage:300volts
♦Conductor using bare soft copper stranded wire
♦Color-coded PVC insulation
♦Core wire gluing and filling material
♦Waterproof PVC coating
♦UL VW-1 & CSA FT1 Vertical flame test
ApplicationLight load mobile tools, mixers, vacuum cleaners
♦Rated temperature:60℃、75℃、90℃、105℃.Rated voltage:300volts
♦Conductor using bare soft copper stranded wire
♦Color-coded PVC insulation
♦Core wire gluing and filling material
♦Aluminum foil Mylar tape isolation
♦The shielding rate of bare soft copper wire braid: 85%
♦VW-1 Vertical flame test
ApplicationUsed in computer power supply line, can remove EMI and RFI interference
| UL Style & CSA Type |
Conductor | Insulation Thickness |
Braid Shield |
Thickness | Over Diameter |
Stand Put-up | ||
| Line number | Number of wires/diameter | Imperial | Metric | |||||
| AWG | No./mm | mm | No./mm | mm | mm | ft/coil | m/coil | |
| SVT （Unshielded） |
18×2C | 41/0.160 | 0.38 | -- | 0.76 | 5.9±0.20 | 1000 | 305 |
| 18×3C | 41/0.160 | -- | 6.3±0.20 | 1000 | 305 | |||
| SVT （Shielded） |
18×3C | 41/0.160 | 0.38 | 16/9/0.12 | 0.76 | 7.2±0.20 | 1000 | 305 |
