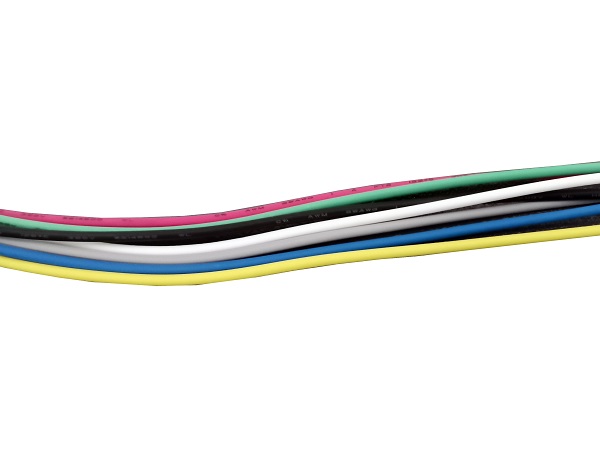

UL 3398

Product Details

Product description

♦Rated voltage:300volts

♦Rated temperature:-40℃〜+150℃

♦Conductor: 32 ~ 10AWG tin-plated, bare copper, silver-plated copper wire

♦ Insulator: cross-linked polyolefin material

♦Tolerance of outer diameter: ± 0.10mm

♦Color: Black-Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Yellow / Green etc.

Characteristic

The wire is soft, easy to process, cold resistant, aging resistant, UV resistant, stable performance, low smoke and halogen free, passes VW-1, and meets UL758, UL1581, RoHS requirements
Scope of application

Suitable for connecting wires for household appliances, lighting fixtures, electronic equipment, temperature sensors, military products, metallurgy and chemical industry, automobiles and ships, nuclear industry, power installation, etc.

Specification

AWG	Conductor			Insulation		Maxcond Resistance 20℃ Ω/km	Allowable Current reference	kg/km	Unit length ft/m
AWG	NO.	mm	OD	Thick	OD	Maxcond Resistance 20℃ Ω/km	Allowable Current reference	kg/km	Unit length ft/m
32	7	0.08	0.24	0.38	1.00	595	0.6	1.45	4000/1220
30	7	0.10	0.30	0.40	1.10	381	1.5	1.84	4000/1220
28	7	0.127	0.36	0.40	1.16	239	2.0	2.18	4000/1220
26	7	0.16	0.50	0.40	1.30	150	3.0	3.06	4000/1220
24	1	0.16	0.60	0.40	1.40	94.2	4.0	3.96	3000/915
22	7	0.16	0.80	0.40	1.60	59.4	6.0	5.67	3000/915
20	26	0.16	1.00	0.40	1.80	36.7	9.0	7.75	3000/915
18	30	0.18	1.20	0.40	2.00	23.2	14	10.4	3000/915
16	26	0.254	1.50	0.40	2.30	14.6	18	16.1	2000/610
14	41	0.254	1.90	0.40	2.70	8.96	22	24.2	2000/610
12	65	0.254	2.40	0.40	3.20	5.64	30	36.7	1000/305
10	105	0.254	3.00	0.40	3.80	3.546	45	56.9	1000/305
