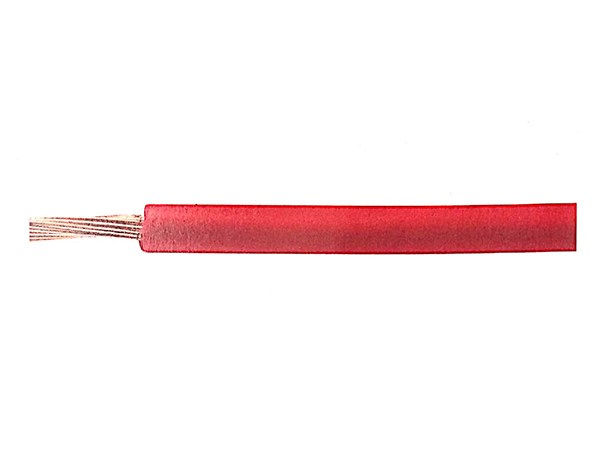

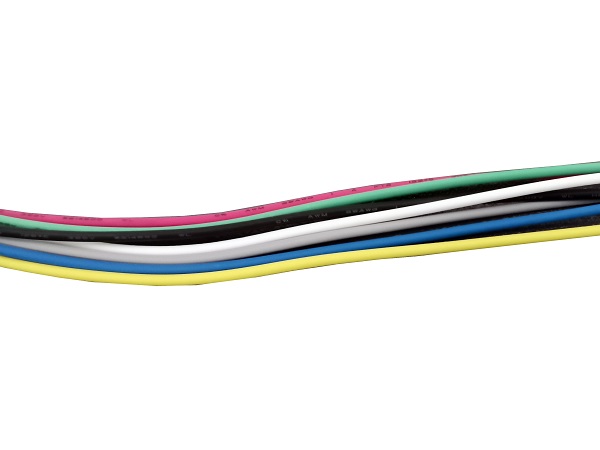

UL 10368

Product Details
Product Description

♦Rated temperature:105℃

♦Rated voltage:300volts

♦Tinned,annealed,stranded or solid copper xonductor 40~10 AWG

♦Conductor can be plated first, then twisted and then plated

♦XLPE insulation, minimum 8mils, minimum average 9mils

♦Uniform thickness of wire to ensure easy stripping and cuttingpassed

♦UL Vertical flame test

Application

Suitable for general computer and electrical equipment

Specification
UL Style
&
CSA Type		 Conductor Insulation Thickness Overall
Diameter		 Max.cond.
resistance at.20℃
Ω/km/20℃		 Stand Put-up
Line number Number of wires/diameter Conductor diameter Imperial Metric
AWG （NO./mm）

（mm）

（mm）

 （mm） Bare
Copper		 Tinned
Copper		 ft/coil m/coil
UL10368
Stranded
Twisted wire		 32 7/0.080 0.240 0.23 0.75 542.0 563.0 2000 610
30 7/0.100 0.300 0.23 0.80 354.0 381.0
28 7/0.127 0.380 0.23 0.90 223.0 239.0
26 7/0.160 0.490 0.23 1.00 140.0 150.0
24 11//0.160 0.610 0.23 1.10 87.6 94.2
22 17/0.160 0.760 0.23 1.30 55.4 59.4
20 26/0.16 0.950 0.23 1.50 34.6 36.7
18 41/0.18 1.210 0.23 1.70 21.8 23.2
16 26/0.254 1.490 0.23 2.00 13.7 14.6
14 41/0.254 1.880 0.23 2.70 8.62 8.96
12 65/0.254 2.370 0.23 3.20 5.43 5.64 1000 305
10 105/0.254 3.000 0.23 3.90 3.409 3.546
