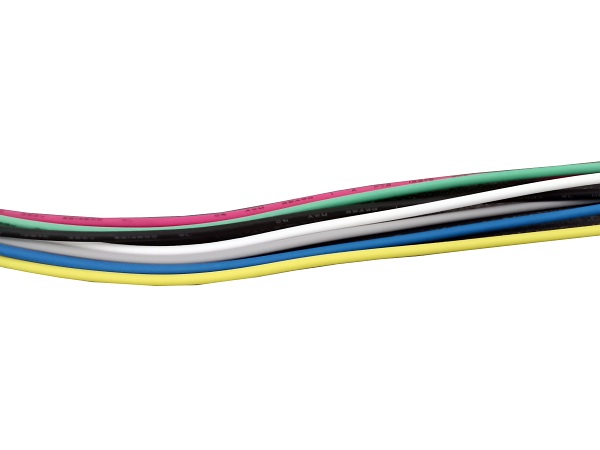

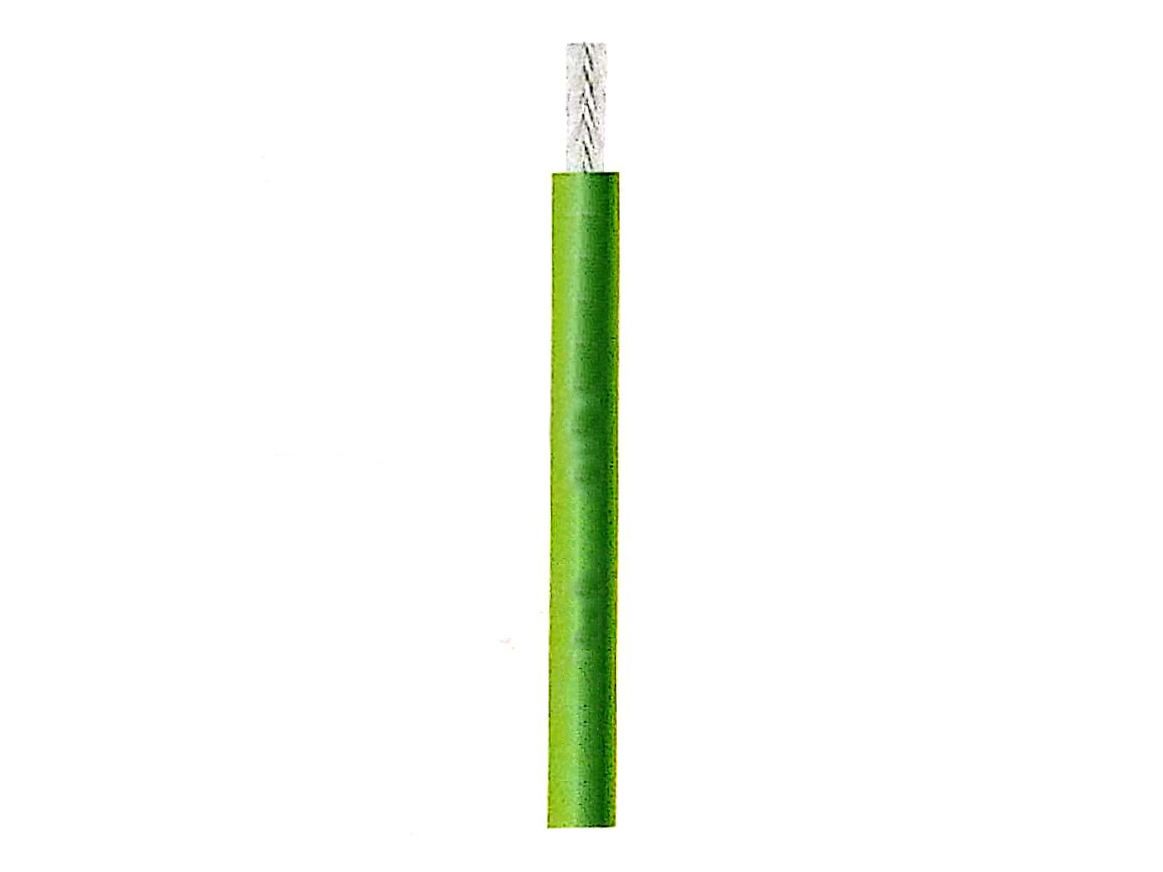

UL 10369

Product Details

Product description

♦Rated temperature:105℃.Rated voltage:600volts

♦XL-PE insulation

♦Conductors use single or stranded bare copper or tinned copper

♦Uniform thickness of wire to ensure easy stripping and cuttingpassed

♦Passed UL VW-1 and CSA FT1 / FT2 vertical combustion test or horizontal combustion test

♦Executive standards: UL758, UL1581, CSA22.2

Applications

For internal wiring of electronic and electrical equipment

Specification

Conductor		Insulation		Resistance	Packing
AWG	NO/φmm	Insulation Thickness mm	Over Diameter mm	（20℃） Ω/km	Mt/coils
26	7/0.16	0.51	1.60	150.00	610
24	11/0.16	0.51	1.70	94.20	610
22	17/0.16	0.51	1.80	59.40	610
20	26/0.16	0.51	2.10	36.70	610
18	41/0.16	0.51	2.40	23.20	610
16	26/0.25	0.51	2.60	14.60	610
14	41/0.25	0.51	3.00	8.96	610
12	65/0.25	0.51	3.50	5.64	305
10	105/0.25	0.51	4.00	3.546	305
